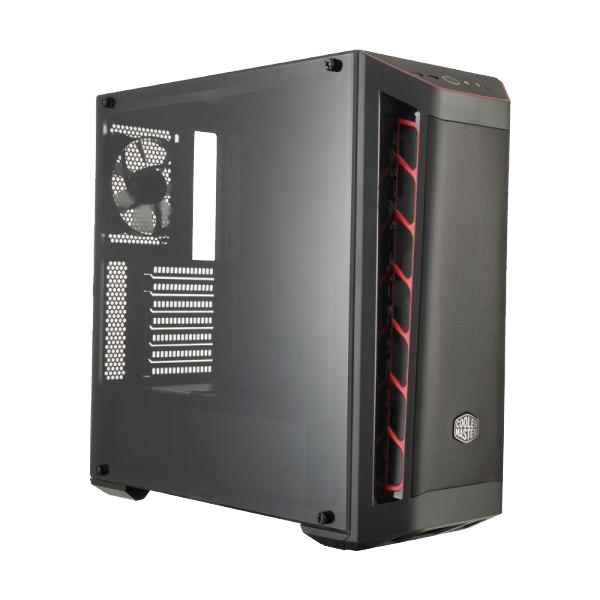

Cooler Master MasterBox MB511 (ATX) Mid Tower Cabinet MCB-B511D-KANN-S00

Mesh Front Panel
The fine mesh front panel filters dust while offering efficient airflow for demanding systems.

Excellent Thermal Performance
Optimized airflow due to the semi-meshed front panel and ventilation holes on top of the case.

Fan And Radiator Support
Front: Three 120mm or two 140mm fans and up to a 360mm radiator with a maximum thickness of 50mm without fans.
Top: Two 120mm or two 140mm fans and supports a 120mm or a 240mm radiator.
Rear: One 120mm fan or radiator. All to ensure you dont have to compromise on performance.

Edge-to-edge Transparent Side Panel
Showcase your build through the transparent side panel.

Expanding The Possibilities
The spacious interior fits all standard motherboards for your gaming needs.

Main Components Clearance
The MB511 case supports CPU Coolers up to a height of 165mm, Graphic cards up to a length of 410mm and Power Supplies up to a length of 180mm.

Specification :

Model Number MCB-B511D-KANN-S00 (Red)
Available Color(s) Black, *partial region on front panel: red/black/white/blue
Materials Steel, Plastic
Dimensions (LxWxH) 496 x 217 x 468 mm
Motherboard Support ATX, Micro ATX, Mini ITX
Expansion Slots 7
5.25 Drive Bays No
2.5 / 3.5 Drive Bays (combo) 2
Drive Bays ŰŇ SSD 5 (Max. 6)
I/O Panel 2x USB 3.0, Audio In & Out (supports HD audio)
Pre-installed Fans ŰŇ Rear 1x 120mm (Black) Fan
Fan Support ŰŇ Top 2 x 120mm, 140mm x 2
Fan Support ŰŇ Front 120mm x 3, 140mm x 2
Fan Support ŰŇ Rear 120mm x 1
Liquid Cooling Support ŰŇ Front 120mm, 140mm, 240mm, 280mm, 360mm
Liquid Cooling Support ŰŇ Top 120mm, 240mm
Liquid Cooling Support ŰŇ Rear 120mm
Clearance ŰŇ CPU Cooler 165mm / 6.49
Clearance ŰŇ PSU 180mm/7.1
Clearance ŰŇ GFX 410mm / 16.1
Cable Routing ŰŇ Behind Motherboard Tray 19mm / 0.74
Dust Filters Front, Top, Bottom
Power Supply Support Bottom Mount, ATX
MasterBox Series
Size Mid Tower
