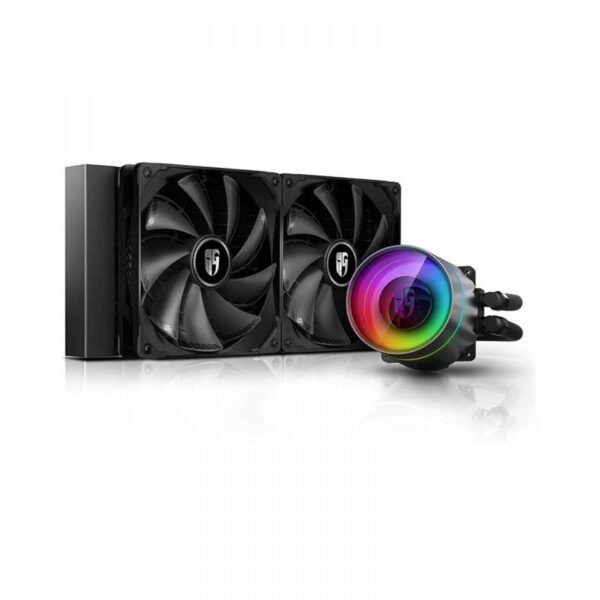

Deepcool GAMERSTORM CASTLE 280EX CPU Cooler DP-GS-H14AR-CSL280EX

In stock

Anti-Leak Technology
Large copper cold plate with 25% more skived fins (Supports TR4)

Compare
SKU: JC-20220904-871 Category:

Anti-Leak Technology
Large copper cold plate with 25% more skived fins (Supports TR4)
Efficient pump design optimized for performance and noise
Swappable custom logo
5V Addressable RGB with motherboard software support

Specification :

Radiator Dimensions 322ÌÑ138ÌÑ27 mm
Radiator Material Aluminum
Net Weight 1600 g
Tube length 380 mm
Pump Dimensions 86ÌÑ75ÌÑ71 mm
Pump Speed 2550 RPMå±10%
Pump Noise 17.8 dB(A)
Pump Connector 3-pin
Pump Rated Voltage 12 VDC
Pump Rated Current 0.2 A
Pump Power Consumption 2.4 W
Fan Dimensions 140ÌÑ140ÌÑ25 mm
Fan Speed 400~1600 RPMå±10%
Fan Airflow 97.03 CFM
Fan Air Pressure 2.00 mmAq
Fan Noise ‰ä_39.8 dB(A)
Fan Connector 4-pin PWM
Bearing Type Hydro Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.3 A
Fan Power Consumption 3.6 W
LED Type Addressable RGB LED
LED Connector 3-pin(+5V-D-G)
LED Rated Voltage 5 VDC
LED Power Consumption 2.25 W•_öPUMP•_ä
