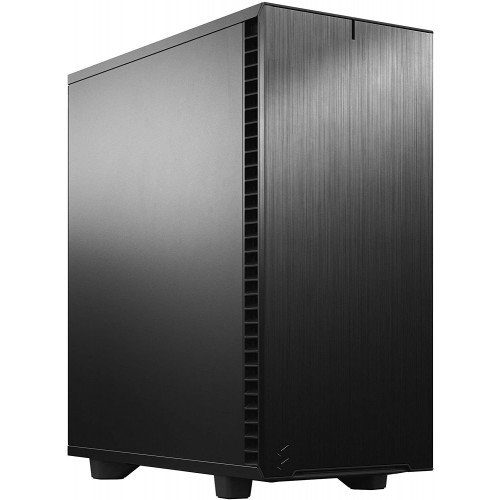

Fractal Design Define 7 Compact Mid-Tower Case (Solid Black Panels) FD-C-DEF7C-01

In stock

ATX, Micro-ATX & Mini-ITX Support
Steel Frame & Side Panels
2 x 2.5/3.5 Drive Bays
2 x 2.5 Drive Trays

SKU: JC-10112022-1755 Category:

Save space without curtailing components, thanks to the Define 7 Compact Mid-Tower Case with solid black pannels from Fractal Design. Supporting ATX, micro-ATX, and mini-ITX motherboards, this mid-tower case features two 2.5/3.5 drive bays inside a drive cage. Two drive trays are also included, allowing you to mount 2.5 drives on the PSU shroud or behind the motherboard. Seven expansion slots can be used to install various adapter cards, including GPUs up to 14.20. If a front fan is installed, graphics cards up to 13.43 are supported. Likewise, with the drive cage and a front fan installed, power supplies are limited to 7.87, while CPU coolers up to 6.65 are also supported.

The Define 7 Compact Mid-Tower Case comes with two preinstalled fans: one 140mm intake fan, and one 120mm exhaust fan. Additional fans can be installed at the front, top, and bottom of the case for increased airflow. Or install radiators up to 360, 240, or 120mm at the front, top, and rear of the case. Front radiators with widths up to 5.71 are supported, and if the drive cage is removed, users can install a 120mm radiator at the bottom of the case, as well.

Utilizing a steel frame and side panels, the Define 7 Compact also features an aluminum front panel. The side panels feature a top-latching design, and the top panel can be swapped between a noise-reducing steel or a ventilated mesh panel, or removed completely for easy access. Keep your build looking tight thanks to easy-to-clean nylon filters at the front, top, and bottom of the case. Additionally, 0.67 to 1.10 of routing space, integrated cable guides, touch fastener straps, and a PSU shroud help you hide excess cables. Alongside a USB 3.1 Gen 2 Type-C port, the front I/O panel also incorporates two USB 3.1 Gen 1 and two 2.0 Type-A ports. Audio input and output ports are also present.

Specification :

Motherboard Support ATX, Micro-ATX, Mini-ITX
External Drive Bays None
Internal Drive Bays 2 x 2.5/3.5
Additional Drive Mounting 2 x 2.5 (Motherboard Tray)
2 x 2.5 (Bottom)
Expansion Slots 7 x Full Height
Maximum GPU Length 14.2 / 360 mm
CPU Cooler Height 6.7 / 169 mm
Supported PSU Size ATX
Maximum PSU Length 7.9 / 200 mm
Fan Mounting (Front) 3 x 120 mm
2 x 140 mm
Fan Mounting (Rear) 1 x 120 mm
Fan Mounting (Side) None
Fan Mounting (Top) 2 x 120 mm
2 x 140 mm
Fan Mounting (Bottom) 1 x 120 mm
Fans Included (Front) 1 x 140 mm (1000 rpm)
Fans Included (Rear) 1 x 120 mm (1200 rpm)
Fans Included (Side) None
Fans Included (Top) None
Fans Included (Bottom) None
Maximum Radiator Size (Front) 360 mm
Maximum Radiator Size (Rear) 120 mm
Maximum Radiator Size (Top) 240 mm
Maximum Radiator Size (Bottom) 120 mm
Fans Included (Internal) None
Filter Locations Bottom, Front, Top
Connections 1 x USB Type-C (USB 3.1 / USB 3.2 Gen 2)
2 x USB Type-A (USB 3.1 / USB 3.2 Gen 1)
2 x USB Type-A (USB 2.0)
Audio Connections 1 x 3.5 mm Input
1 x 3.5 mm Output
Windowed Panel No
Material Aluminum, Steel
Cable Management Space 1.1 / 28 mm
Dimensions (W x H x D) 8.3 x 18.7 x 16.8 / 210 x 474 x 427 mm
Weight 18.98 lb / 8.61 kg
Warranty Length Limited 2-Year Warranty
