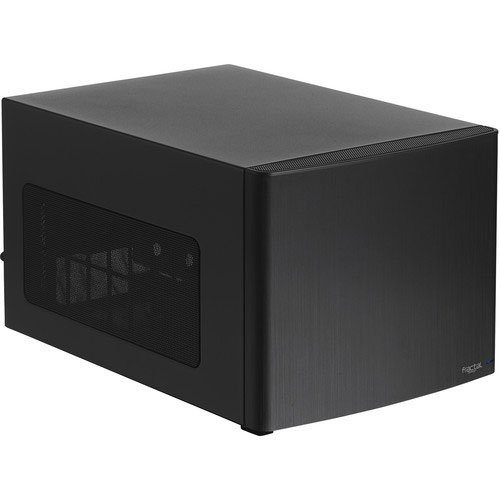

Fractal Design Node 304 Mini-ITX Cabinet FD-CA-NODE-304-BL

Hankering for a small form-factor case with big potential? Meet the Node 304 Mini ITX Computer Case in black from Fractal Design. Featuring a modular interior and a compact, minimalist appearance, this case is intended to fit plenty of components while not eating up space. Install up to six 2.5 or 3.5 drives and take advantage of two expansion slots for adapter cards, including a GPU up to 12.2 when two drive brackets are removed. Users can also fit ATX PSUs up to 6.3. However, power supplies and graphics cards longer than 6.3 and 6.7 may conflict with one another. The Node 304 supports tower CPU coolers up to 6.5.

Sporting three preinstalled fans, the Fractal Design Node 304 utilizes two 92mm Silent Series R2 fans on the front for air intake. At the rear of the case, a single 140mm Silent Series R2 fan provides exhaust. All three fans connect to an included fan controller for easy airflow management. Alternatively, users can replace these fans with single-fan water coolers. Removable air filters help keep the case looking clean, trapping dust at the front of the case and protecting the PSU, while the GPU features a separate fan filter. In addition to a power button, power and HDD LED indicators, and separate 3.5mm audio input and output ports, the Fractal Node 304s aluminum front panel sports two USB 3.1 Gen 1 Type-A ports. A USB 3.1-to-2.0 adapter is also included with the case.

Specification :

Compatibility
Motherboard Support Mini-DTX, Mini-ITX
External Drive Bays None
Internal Drive Bays 6 x 2.5/3.5
Expansion Slots 2 x Full Height
Maximum GPU Length 12.20 / 310 mm
CPU Cooler Height 6.50 / 165 mm
Supported PSU Size ATX
Maximum PSU Length 6.30 / 160 mm
Cooling
Fan Mounting (Front) 2 x 80 mm
Or
2 x 92 mm
Fan Mounting (Rear) 1 x 120 mm
Or
1 x 140 mm
Fan Mounting (Side) None
Fan Mounting (Top) None
Fan Mounting (Bottom) None
Fans Included (Front) 2 x 92 mm (1300 rpm)
Fans Included (Rear) 1 x 140 mm (1000 rpm)
Fan Controller Included Yes
Filter Locations Front
I/O
Connections 2 x USB Type-A (USB 3.1 / USB 3.2 Gen 1)
Audio Connections 1 x 3.5 mm Input
1 x 3.5 mm Output
Display Connections None
Physical
Windowed Panel No
Material Aluminum
Dimensions (W x H x D) 9.84 x 8.27 x 14.72 / 250 x 210 x 374 mm
Weight 10.8 lb / 4.9 kg
Warranty Length Limited 2-Year Warranty
Packaging Info
Package Weight 12.69 lb
Box Dimensions (LxWxH) 17.8 x 13.4 x 12.2
