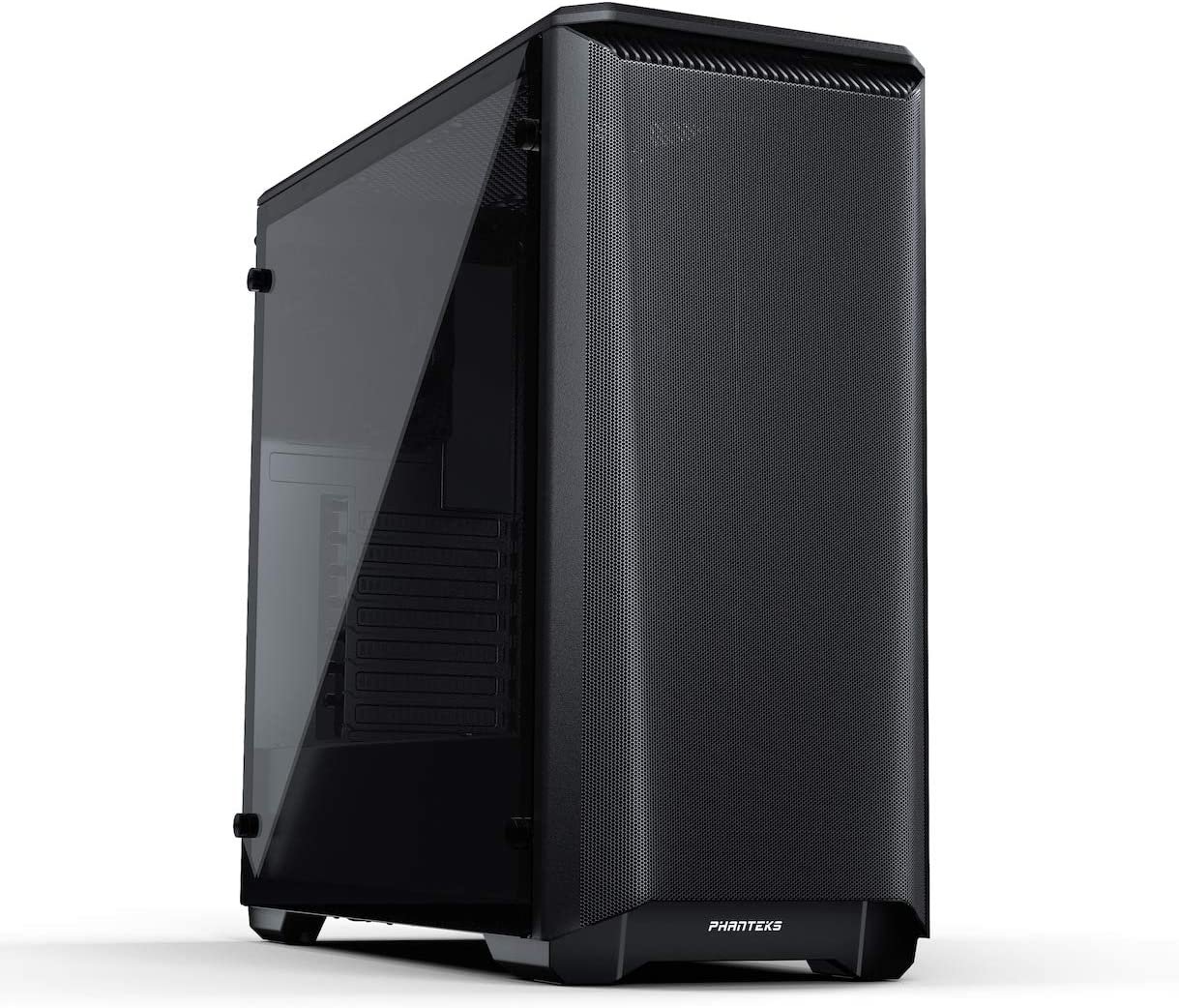

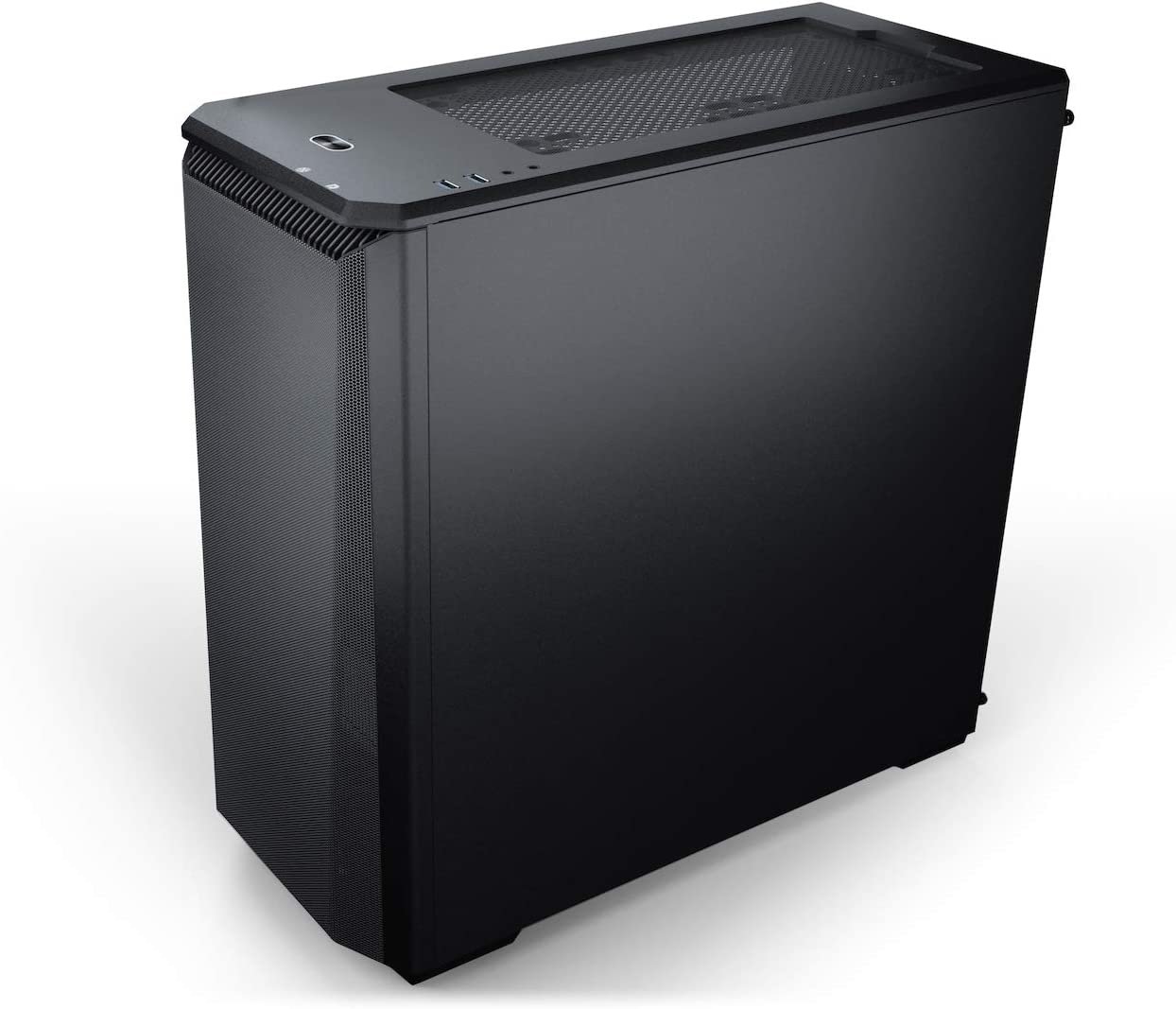

Phanteks Eclipse P400A Mid Tower Gaming Cabinet PH-EC400ATG_BK01

The Phanteks Eclipse P400A breathes performance with its full metal mesh front panel. Thanks to engineering improvements we have been able to create an Ultra-Fine Performance Mesh that brings the best possible performance while keeping dust from entering the system.

Strength & Performance

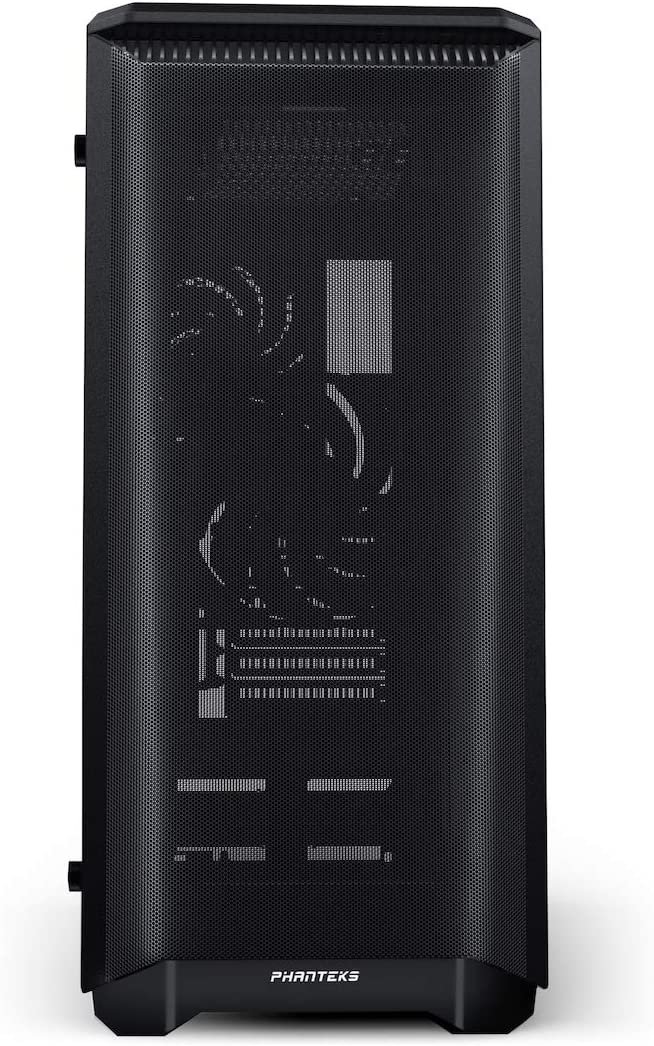

Full-Metal Mesh Front Panel

The single-piece front panel is made from an Ultra-Fine Steel Mesh. This mesh catches dust, adds structure and strength, and is part of the P400As seamless design.

Improved Airflow

The P400A chassis has improved airflow to keep your system cool. The optimised High Air-flow Mesh Front Design offers maximum cooling performance.

Integrated 3-Speed Fan Controller

The built-in Fan Controller balances noise and performance with the push of a button. Choose the right speed for you: Full, Medium or Low.

Cooling Capacity

The Eclipse P400A has a range of possible fan and radiator locations up to 360mm for both 120mm and 140mm fans.

Storage Capacity

The P400A supports 3 x 3.5 HDDs and 2 x 2.5 SSDs out of the box with easy to use trays and vibration dampening. There is space for an additional four drives with the optional PH-HDDKT_02 brackets.

Specification :

Storage
Internal Expansion Bays 2 x 2.5
2 x 3.5
Expansion
Expansion Slots 7 x Full Height
Interfaces/Ports
USB Ports 2 x USB 3.0
Headphone Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack
Electrical
Cooling System Front: Supports 3 x 120mm or 2 x 140mm fans (1 x 120mm fan included)
Top: Supports 2 x 120mm or 140mm fans
Rear: Supports 1 x 120mm fan (included)
Power Supply ATX Power Supply supported
Physical
Form Factor Mid Tower Case
Case Colour Black
Material Powder Coated Steel
Tempered Glass
Motherboard Compatibility E-ATX
ATX
MicroATX
Mini-ITX
Width 210 mm
Depth 470 mm
Height 465 mm
Weight 7 kg
Warranty
Warranty 5 Years
Key Features
Firewire No
Main Colour Black
Case Type Tower
USB 3.0 Support Yes
Case Form Factor Mid Tower
Power Supply Included No
Optimised for Gaming
80Plus Rated No
PSU Form Factor ATX
Display Model in Showroom No
e-SATA No
L.E.D Fan No LED
Internal 3.5 Bay 2
Internal 2.5 Bay 2
ATX Yes
Micro-ATX Yes
ITX Yes
E-ATX Yes
Cooler Height 160 mm
Built-in Card Reader No
USB Type-C Support No
Front HDMI No

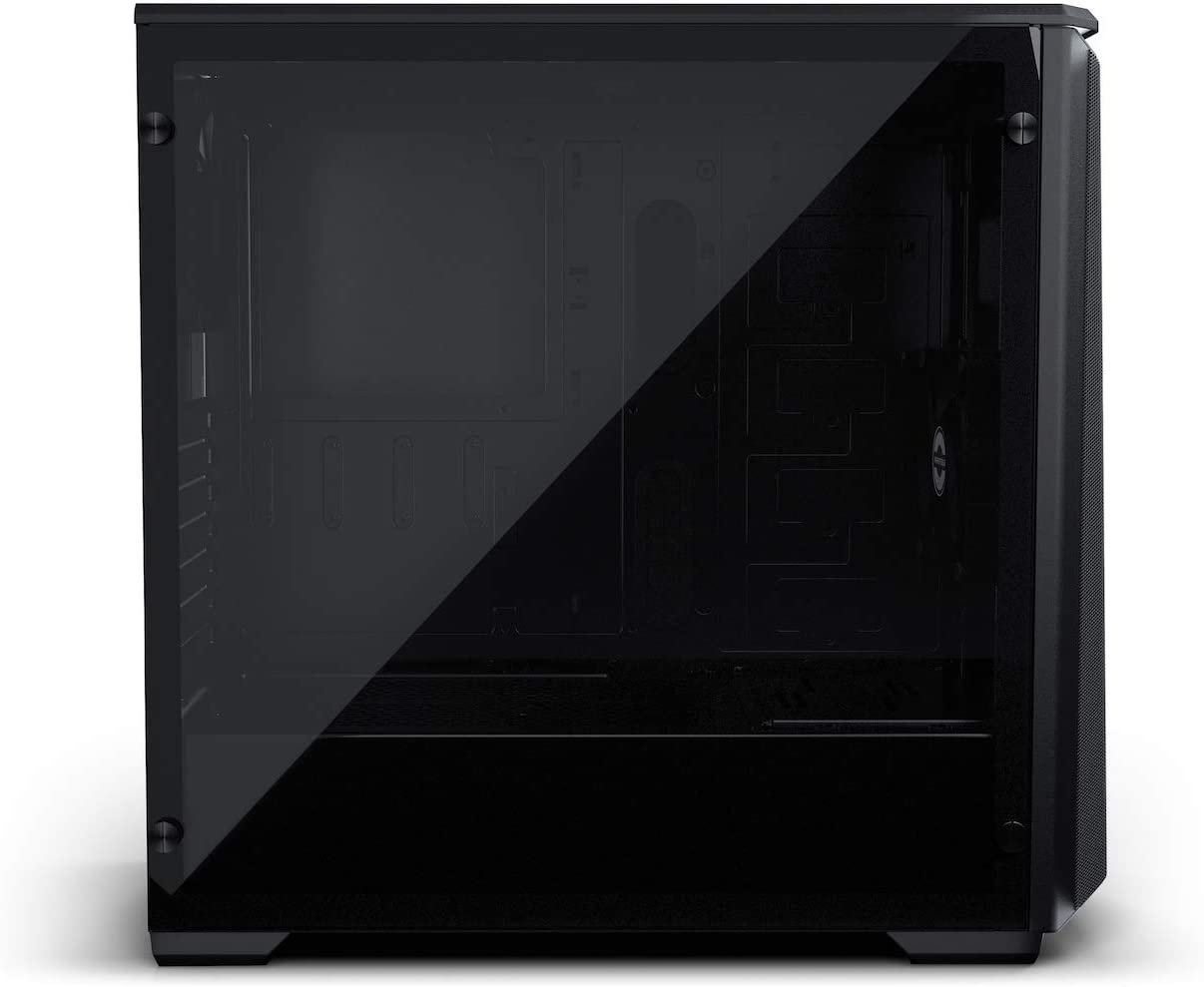

Side Panel Type Tempered Glass
GPU Length 420 mm
PSU Depth 270 mm
Front Audio Type Separate
Maximum Motherboard Size Supported E-ATX
Item Details
Manufacturer Phanteks
Manufacturer Code PH-EC400ATG_BK01
