PRODUCT SPECIFICATIONS

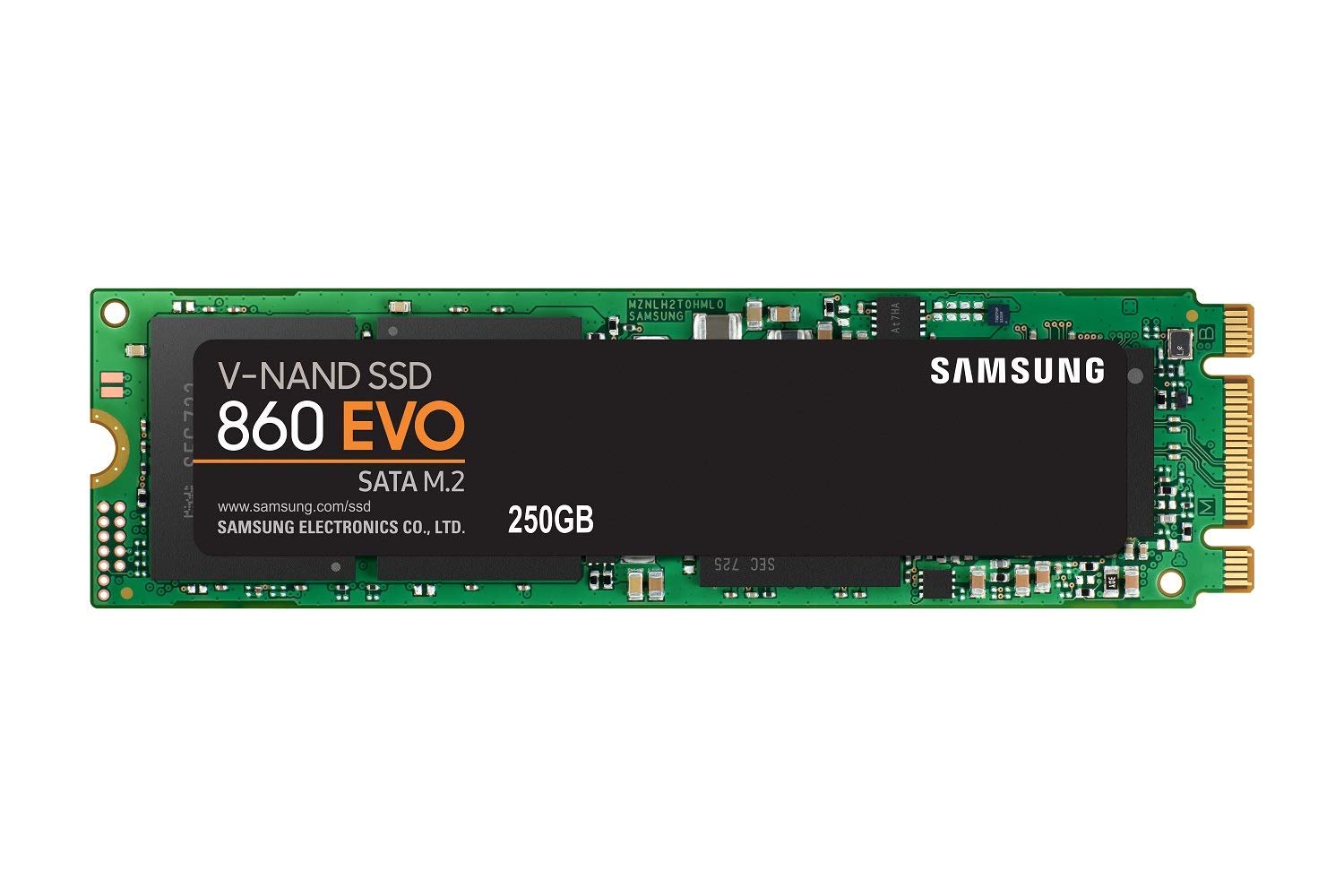

Series: SSD 860 EVO
Usage Application: Client PCs
Interface: SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s & SATA 1.5 Gb/s interface.
Capacity: 250 GB (1 GB=1 Billion byte by IDEMA)
Sequential Read Speed: Up to 550 MB/s Sequential Read
Sequential Write Speed: Up to 520 MB/s Sequential WriteRa
ndom Read Speed: Random Read (4KB, QD32): Up to 97,000 IOPS Random Read, Random Read (4KB, QD1): Up to 10,000 IOPS Random Read
Random Write Speed: Random Write (4KB, QD32): Up to 88,000 IOPS Random Write, Random Write (4KB, QD1): Up to 42,000 IOPS Random Write
Controller: Samsung MJX Controller
NAND Type: Samsung V-NAND 3bit MLC
Cache Memory: Samsung 250 GB Low Power DDR4 SDRAM
Trim Support: Yes
AES Encryption: AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
S.M.A.R.T. Support: Yes
GC (Garbage Collection): Auto Garbage Collection Algorithm
WWN Support: World Wide Name supported
Device Sleep Mode Support: Yes
Internal Storage: Yes
Power Consumption (W): Average: 2.2 W Maximum: 4.0 W (Burst mode)
Reliability (MTBF): 1.5 Million Hours Reliability (MTBF)
Environmental Specs

Operating Temperature: 0 – 70 ℃ Operating Temperature
Shock: 1,500G & 0.5ms (Half sine)
Form Factor: M.2 SATA
Dimensions (W x D x H): 3.15″ X 0.87 ” X 0.09″
Weight: 0.18 lbs.
Software: Magician Software for SSD management
