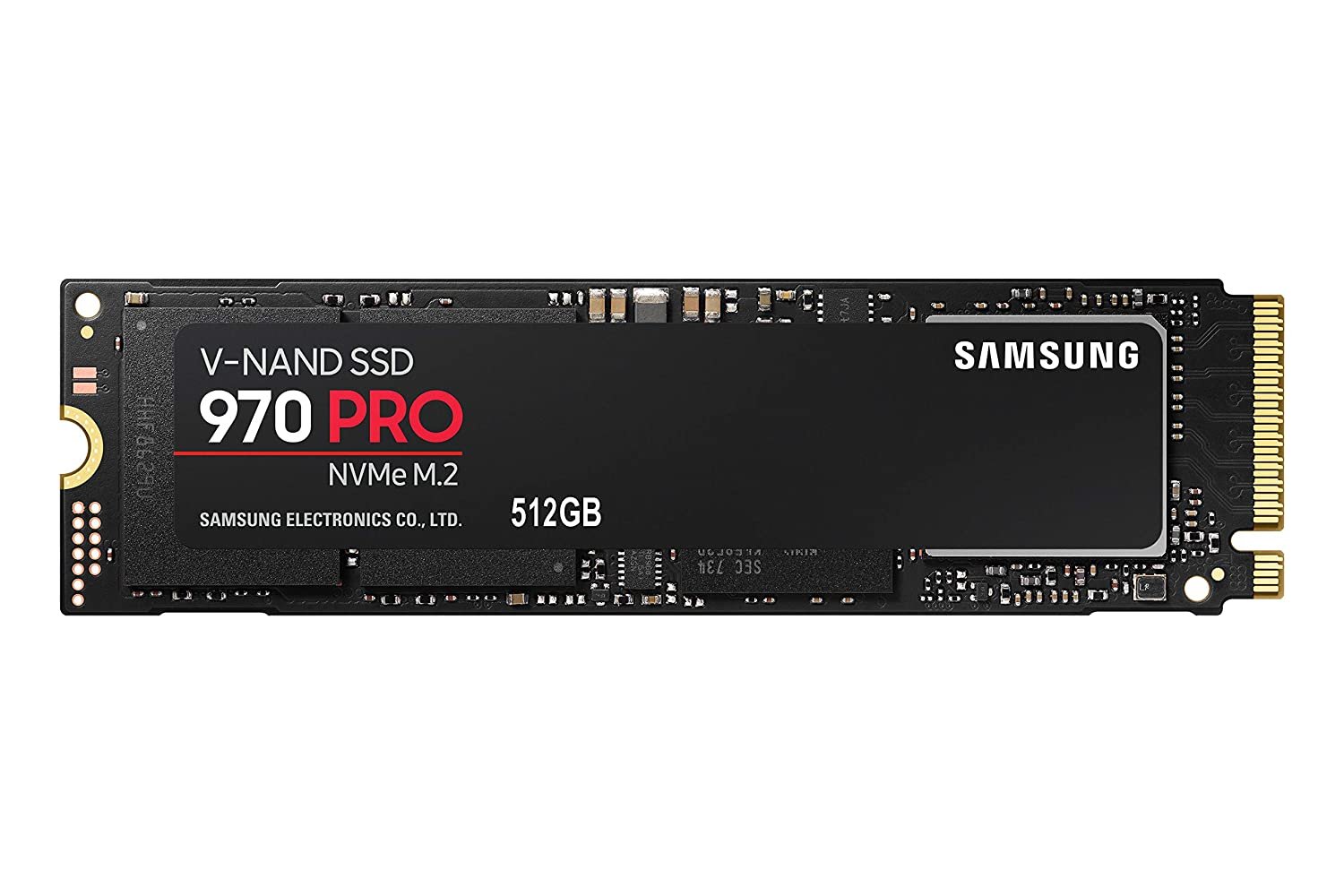

SAMSUNG 970 PRO 512GB M.2 NVMe Internal SSD

PRODUCT SPECIFICATIONS
Series: SSD 970 PRO

Storage

Capacity: 512GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)
Usage Application: Client PCs
Interface: PCIe Gen 3.0 x4, NVMe 1.3
Key Features

Sequential Read Speed: Up to 3,500 MB/s * Performance may vary based on system hardware & configuration
Sequential Write Speed: Up to 2,300 MB/s * Performance may vary based on system hardware & configuration
Random Read Speed

Random Read (4KB, QD32): Up to 370,000 IOPS Random Read,
Random Read (4KB, QD1): Up to 15,000 IOPS Random Read
*Performance may vary based on system hardware & configuration

Random Write Speed

Random Write (4KB, QD32): Up to 500,000 IOPS Random Write
Random Write (4KB, QD1): Up to 55,000 IOPS Random Write
* Performance may vary based on system hardware & configuration

Controller: Samsung Phoenix Controller
NAND Flash: Samsung V-NAND 2-bit MLC
Trim Support: Supported
AES Encryption: AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
S.M.A.R.T. Support: Supported
GC (Garbage Collection): Auto Garbage Collection Algorithm
Device Sleep Mode Support: Yes
Internal Storage: Yes
Temperature proof: Yes
NVMe: Yes
Gaming SSDs: Yes
General

Average Power Consumption (system level)
*Average: 5.2 W
*Maximum: 8.5 W (Burst mode)
*Actual power consumption may vary depending on system hardware & configuration
Power consumption (Idle): Max. 30 mW
*Actual power consumption may vary depending on system hardware & configuration
Voltage: 3.3 V ± 5 % Allowable voltage
Reliability (MTBF): 1.5 Million Hours Reliability (MTBF)
Environmental Specs

Operating Temperature: 0 – 70 ℃ Operating Temperature
Shock: 1,500 G & 0.5 ms (Half sine)
Form Factor

Product: M.2 (2280)
Dimensions (W x D x H)

Product 3.16″ x 0.09″ x 0.87″
Weight

Product: Max 0.28oz.
