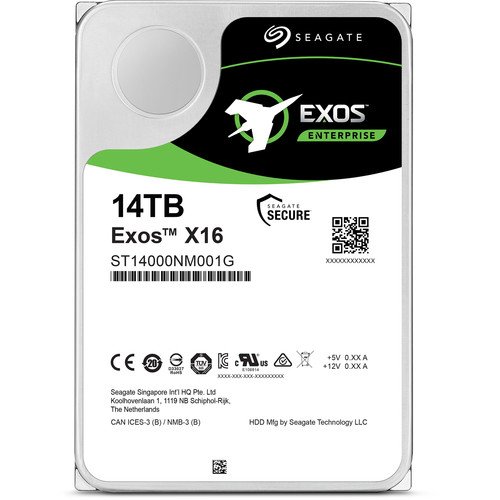

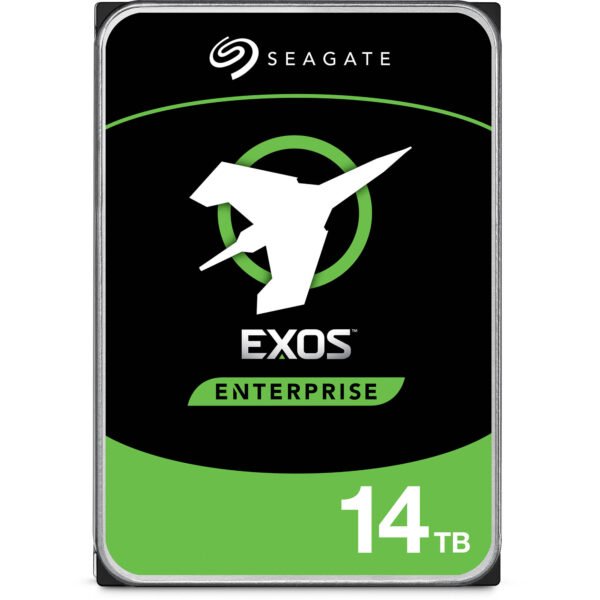

Seagate 14TB Exos X16 7200 rpm SATA III 3.5‰Û_ Enterprise Internal Hard Drive ST14000NM001G

The 14TB Exos X16 7200 rpm SATA III 3.5‰Û_ Internal HDD from Seagate is a high performance, large capacity drive designed for data storage. It‰Ûªs suitable for engineering workstations, network servers, mainframes, supercomputers, and other demanding tasks that require 24/7 operation. This 7200 rpm drive utilizes the SATA III 6 Gb/s interface for data transfer rates of up to 261 MB/s. Moreover, as a professional-grade drive, it has a MTBF rating of 2.5 million hours as well as built-in digital sensors to ensure optimal performance.

Maximum Storage Capacity for Highest Rack Space Efficiency

Hyperscale model tuned for large data transfers
PowerBalance feature optimizes IOPS/Watt
Built-in digital environmental sensors for measuring internal humidity, pressure, and temperature to ensure reliability,
performance, and quality
2.5 million hours MTBF

Best-Fit Applications

Hyperscale applications/cloud data centers with replicated storage
Massive scale-out data centers and big data analytics
OLTP and HPC applications
High-capacity density RAID storage
Mainstream enterprise external storage arrays (SAN, NAS, DAS)
Distributed file systems, including Hadoop and Ceph
Enterprise backup and restore ‰ÛÒ D2D, virtual tape
Centralized surveillance

Specification :

Storage
Drive Capacity 14.00 TB
Cache Memory 256 MB
Performance
Interface SATA III (6 Gb/s)
Maximum Read Speed 261 MB/s
Maximum Write Speed 249 MB/s
Random Read Speed 170 IOPS
Random Write Speed 440 IOPS
Physical
Drive Type HDD
Form Factor 3.5‰Û_
HDD Specs
Spindle Speed (RPM) 7200 RPM
Reliability / Data Integrity
Mean Time Between Failures (MTBF) 2.5 Million Hours
Non-Recoverable Read Errors per Bits Read 1 in 1015
Electrical
Power Draw 5.0 W (Idle)
10.00 W (Active)
6.3 W (Active)
Supported Voltage 5 VDC, 12 VDC
Environmental
Operating Shock 50 G / 2.0 ms
Storage Shock 200 G / 2.0 ms
Operating Vibration 2.27 G / 2 to 500 Hz
Operating Temperature 41 to 140å¡F / 5 to 60å¡C
General
Dimensions (W x H x D) 4.01 x 1.03 x 5.79‰Û_ / 101.85 x 26.11 x 147 mm
Weight 1.48 lb / 0.67 kg
Packaging Info
Package Weight 1.75 lb
Box Dimensions (LxWxH) 9 x 6 x 3‰Û_
