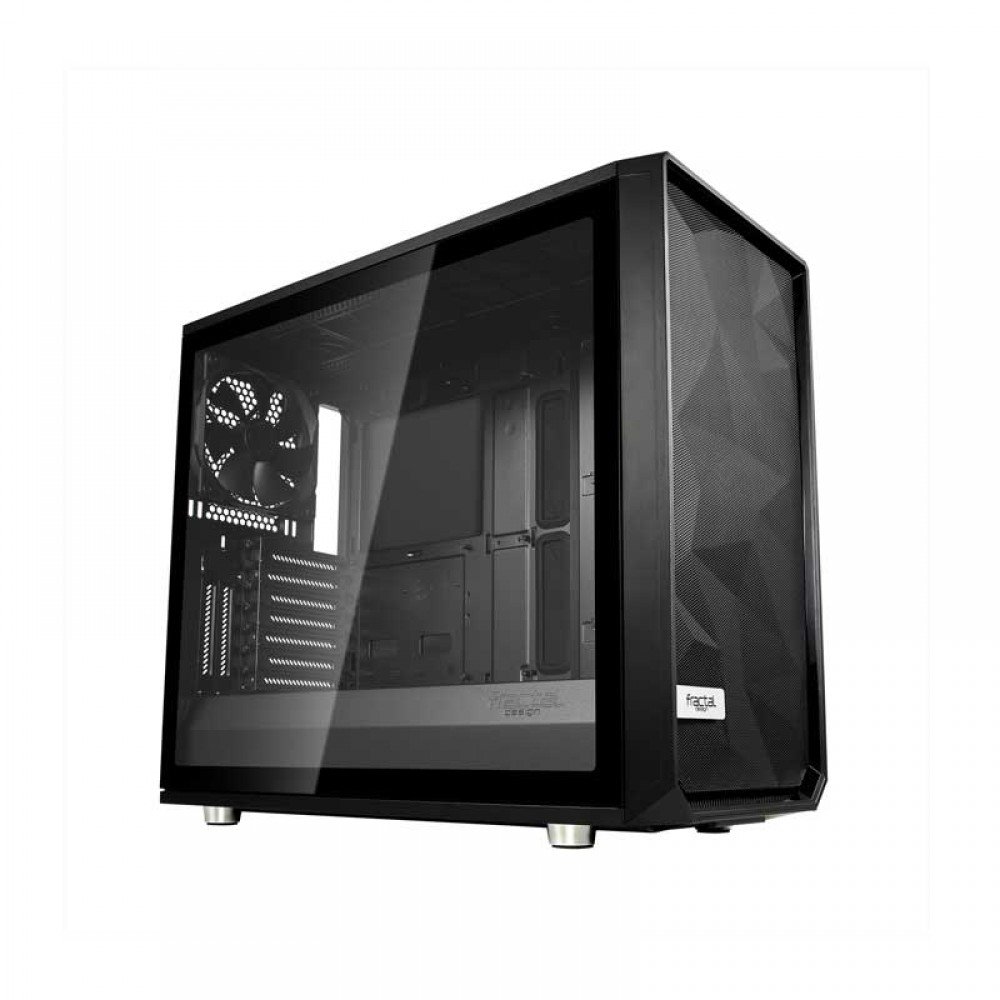

Fractal Design MESHIFY S2 (ATX) Mid Tower Cabinet WithTempered Glass Side Panel (Black) FD-CA-MESH-S2-BKO-TGL

In stock

Fractal Design Meshify S2 Series ATX Mid Tower Cabinet With Tempered Glass Side Panel, Featuring 7+2 Vertical Expansion Slots, 360mm Radiator Mount, 9 Fan Slots and An Ample of Airflow Design.

SKU: JC-10112022-1779 Category:

Meshify S2 Tempered Glass

Powerful performance and bold aesthetics are magnified to an all new degree in the larger and even more capable Meshify S2

Modular high-airflow open layout design
Stealth inspired angular mesh ventilation
Seamless, bolt-free tempered glass

Unrivalled performance

The largest Meshify case to date combines all the strengths of its predecessors with our most revolutionary modular design elements. Its iconic angular mesh offers more than just a distinctive lookŰÓit augments air intake and unleashes the true potential of the open-layout PC.

Powerful performance and daring design

In a unique instance of refinement eliminating constraint, the Meshify S2s modular open layout is all but an end to hardware restrictions.

Meshify S2 boasts immense cooling capacity with three Dynamic X2 fans, nine total fan positions, 420/360/280 mm radiator mounts, built-in pump and reservoir support, and an innovative removable top bracket. Other new additions include USB Type-C, a versatile PSU shroud, Flex-VRC Vertical GPU Riser support, and bolt-free tempered glass.

Seamless, bolt-free tempered glass

Show off your clean, un-cluttered build in style

Push-to-lock latching

Push-to-lock latching on both side panels for easy access

Type-C with fast charge support

USB 3.1 Gen 2 Type-C with fast charge support and speeds up to 10Gbps

Extensive water-cooling support

Built for advanced liquid cooling with adjustable reservoir brackets, pre-drilled pump mounts, and an innovative removable top bracket with dedicated fill port

Support for radiators up to 420 mm in the top, 360 mm in front, and 280 mm in the base
Vertical 2.5 slot GPU support using the Flex VRC-25 vertical PCIe riser (sold separately)

A multitude of mounting options

Full-length ventilated PSU shroud with removable front cover and alternate SSD mounts
Concealed drive mounts for two SSDs and three HDDs with vibration dampened enclosures

High airflow and peak performance

Nine fan positions with clear airflow paths for massive cooling capacity
Three Dynamic X2 fans pre-installed as dual intakes and rear exhaust for balanced airflow
Nexus+ Smart Hub allows motherboard control of up to three PWM devices and six case fans
Modular high-airflow open layout design
Stealth inspired angular mesh ventilation

Showcase your hardware
Vertical 2.5 slot GPU support using the Flex VRC-25 vertical PCIe riser (sold separately)

Easy-to-clean filters
Easy to clean front, top, and base filters with full PSU coverage and convenient front access

SATA Extensions cable

Easily connect your SATA storage devices to expand your build

Specification :

3.5/2.5 Universal drive brackets 3
Dedicated 2.5 drive brackets 2 included, 4 positions total
Expansion slots 7 + 2 vertical
Front ports 1x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, Audio I/O
Total fan mounts 9
Front fan 3x 120/140 mm (2 x Dynamic X2 GP-14 included)
Top fan 3x 120/140 mm or 1x 180 mm with 165 mm hole spacing
Rear fan 1x 120/140 mm (1 x Dynamic X2 GP-14 included)
Bottom fan 2x 120/140 mm
Dust filters Bottom fan + PSU, Front fans, Top panel
Cable routing grommets Yes
Fixed velcro straps Yes
Tool-less push-to-lock Both side panels
Captive thumbscrews HDD brackets, SSD brackets
Left side panel Light tint tempered glass
Right side panel Steel
Power supply type ATX
Motherboard compatibility EATX (up to 285 mm wide), ATX, mATX, ITX
Front radiator 120/240/360 mm, 140/280 mm
Top radiator 120/240/360 mm, 140/280/420 mm (max 35 mm motherboard component height)
Rear radiator 120 mm
Bottom radiator 120/240 mm, 140/280 mm
PSU max length 300 mm
GPU max length 440 mm with front fan mounted
CPU cooler max height 185 mm
Cable routing space 23 mm
Vertical GPU Support (with Flex VRC-25) 31mm total clearance, standard 2-slot GPU (<38mm thickness) recommended for optimum cooling Dimensions Case dimensions (LxWxH)Case dimensions (LxWxH) 538 x 233 x 465 mm Case dimensions w/o feet/protrusions/screws 530 x 233 x 448 mm Net weight 10.04 kg Package dimensions (LxWxH) 535 x 325 x 650 mm Gross weight 11.79 kg Volume 55.3 liters Package contents Meshify S2 ŰŇ Tempered Glass computer case, User manual, Accessory box Warranty 2 Years
